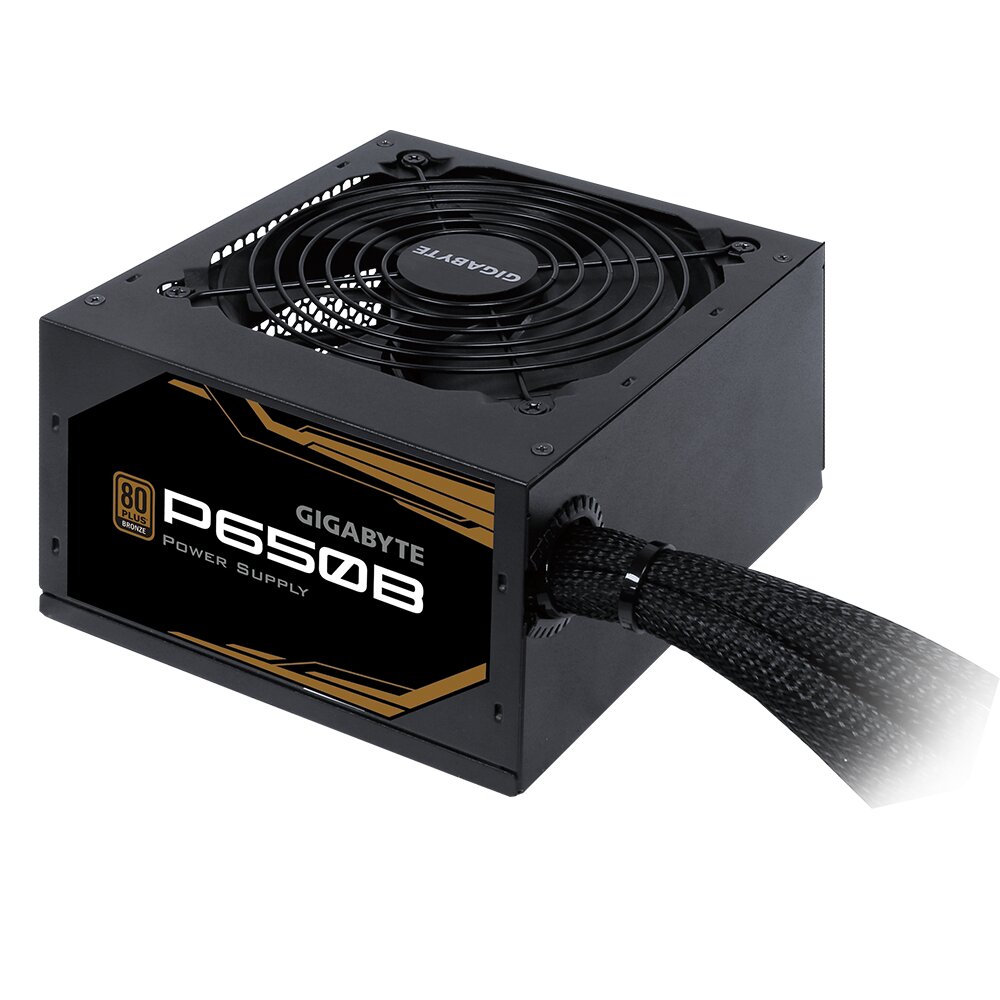

• Model: P650B
• Type: Intel Form Factor ATX 12V v2.31
• PFC: Active PFC (>0.9 typical)
• Input Voltage: 100-240 Vac (full range)
• Input Current: 9A-4A
• Input Frequency: 50-60 Hz
• Output Capacity: 650W
• Dimension: D150 x W140 x H86 mm
• Fan Type: 120mm Hydraulic Bearing Fan
• Efficiency: Up to 85% at typical load
• MTBF: >100,000 hours
• Protection: OPP/UVP/OVP/SCP/OCP
• Regulatory: CE/CCC/BSMI/KCC/EAC/UL/TUV/RCM/FCC/PSE
• Connectors:
  ATX/MB 20+4 Pin x 1
  CPU/EPS 4+4 Pin x 1
  PCI-e 6+2 Pin x 4, SATA x 6
  4 Pin Peripheral x 3
  4 Pin Floppy x 1





NB: GP-P650B
