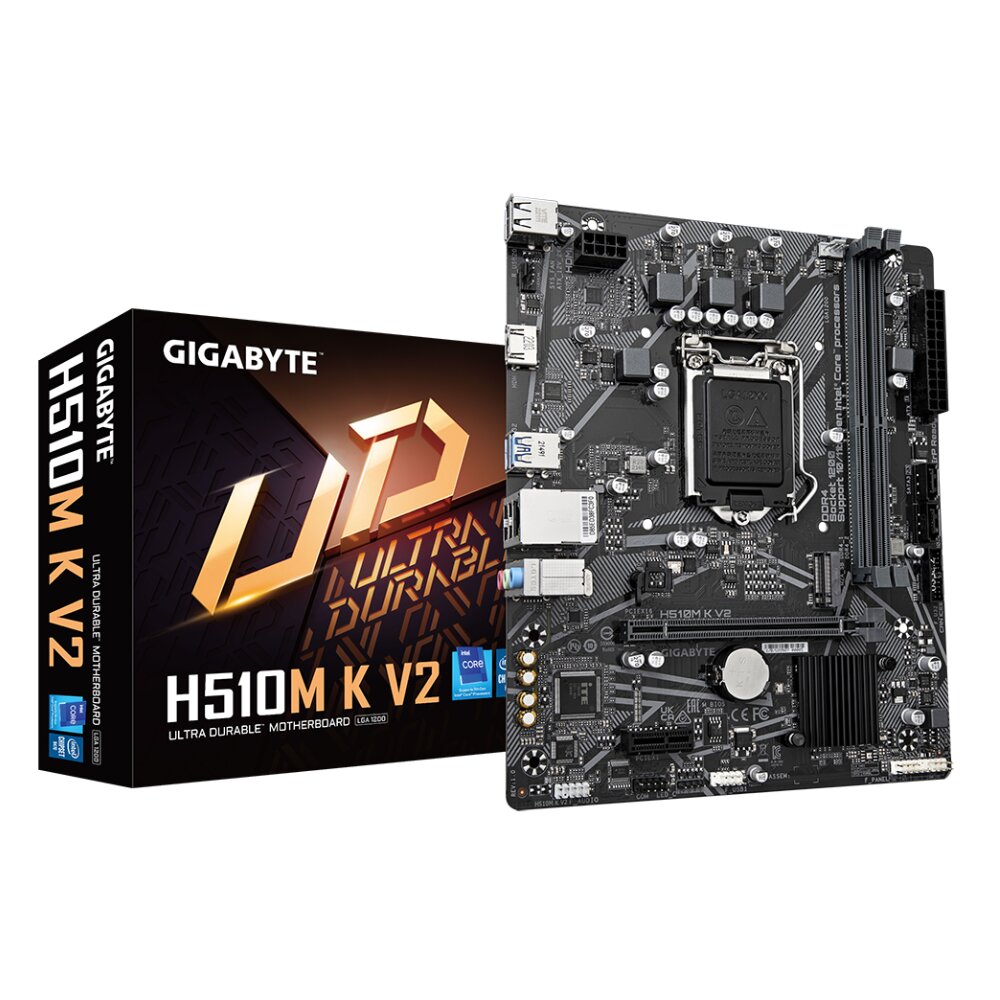

Mother Gigabyte H510M K V2 (Lga1200)

CARGANDO IMAGENES

$ 121.226

En 3 cuotas sin interés de $40.409

Producto con Stock

Código: MT9128 | Marca: Gigabyte

Descripción

Procesador
LGA1200 package:
1. 11th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/Intel^® Core™ i5 processors
2. 10th Generation Intel^® Core™ i9 processors/Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors
3. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1. Intel^® H470 Express Chipset
Memoria
1. 11th Generation Intel^® Core™ i9/i7/i5 processors:
  Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
2. 10th Generation Intel^® Core™ i9/i7 processors:
  Support for DDR4 2933/2666/2400/2133 MT/s memory modules
3. 10th Generation Intel^® Core™ i5/i3/Pentium®/Celeron® processors:
  Support for DDR4 2666/2400/2133 MT/s memory modules
4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
5. Dual channel memory architecture
6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
8. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Gráficos Integrados
Integrated Graphics Processor-Intel^® HD Graphics support:
1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
  * Support for HDMI 1.4 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)
Audio
1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
1. Realtek^® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Puertos de Expansión
CPU:
1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Interfaz de Almacenamiento
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
2. 2 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID5 support for NVMe SSD storage devices
* Supported with an additional PCIe to M.2 NVMe SSD adapter card
RAID 0, RAID 1, and RAID5 support for SATA storage devices
USB
Chipset:
1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Conectores Internos de E/S
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x RGB LED strip header
6. 1 x M.2 Socket 3 connector
7. 2 x SATA 6Gb/s connectors
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x USB 3.2 Gen 1 header
11. 1 x USB 2.0/1.1 header
12. 1 x serial port header
13. 1 x Clear CMOS jumper
Conectores del Panel Trasero
1. 1 x HDMI port
2. 2 x USB 3.2 Gen 1 ports
3. 4 x USB 2.0/1.1 ports
4. 1 x RJ-45 port
5. 3 x audio jacks
Controlador de E/S
1. iTE^® I/O Controller Chip
Monitorización H/W
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Fan fail warning
5. Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 1 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Características Únicas
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  Ambient LED
  EasyTune
  Smart Backup
  System Information Viewer
2. Support for Q-Flash
3. Support for Xpress Install
Sistema Operativo
1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit
Diseño
1. Micro ATX Form Factor; 22.6cm x 18.5cm
